PTFE Bowden Tube Guide and Canbus Wire Support

Required Hardware:

• M3x8 Bolt and M3 T-nut
• M5x10 Bolt or a M5x8
• Optional 4mm drill bit for cleaning out bowden tube path

About

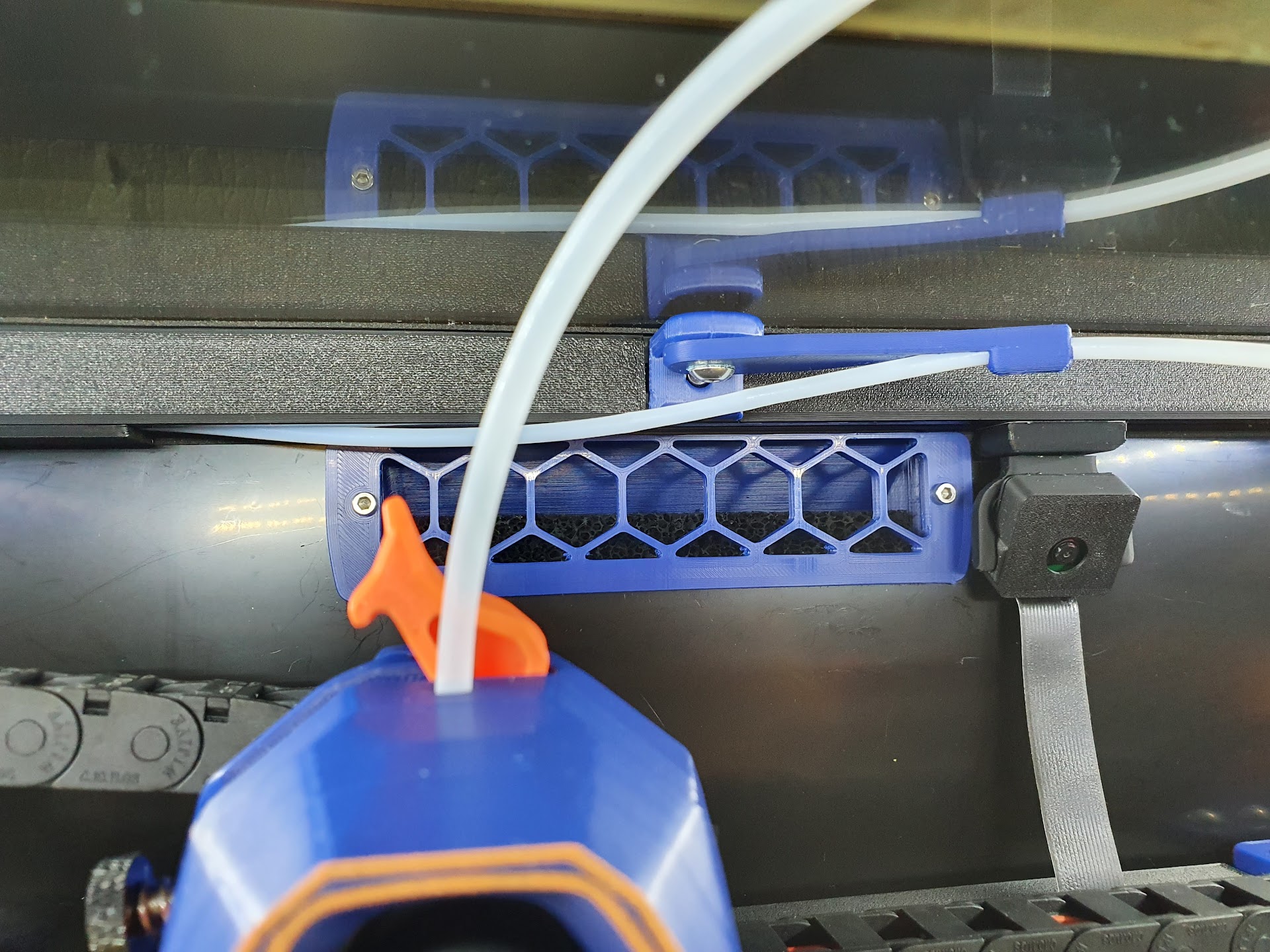

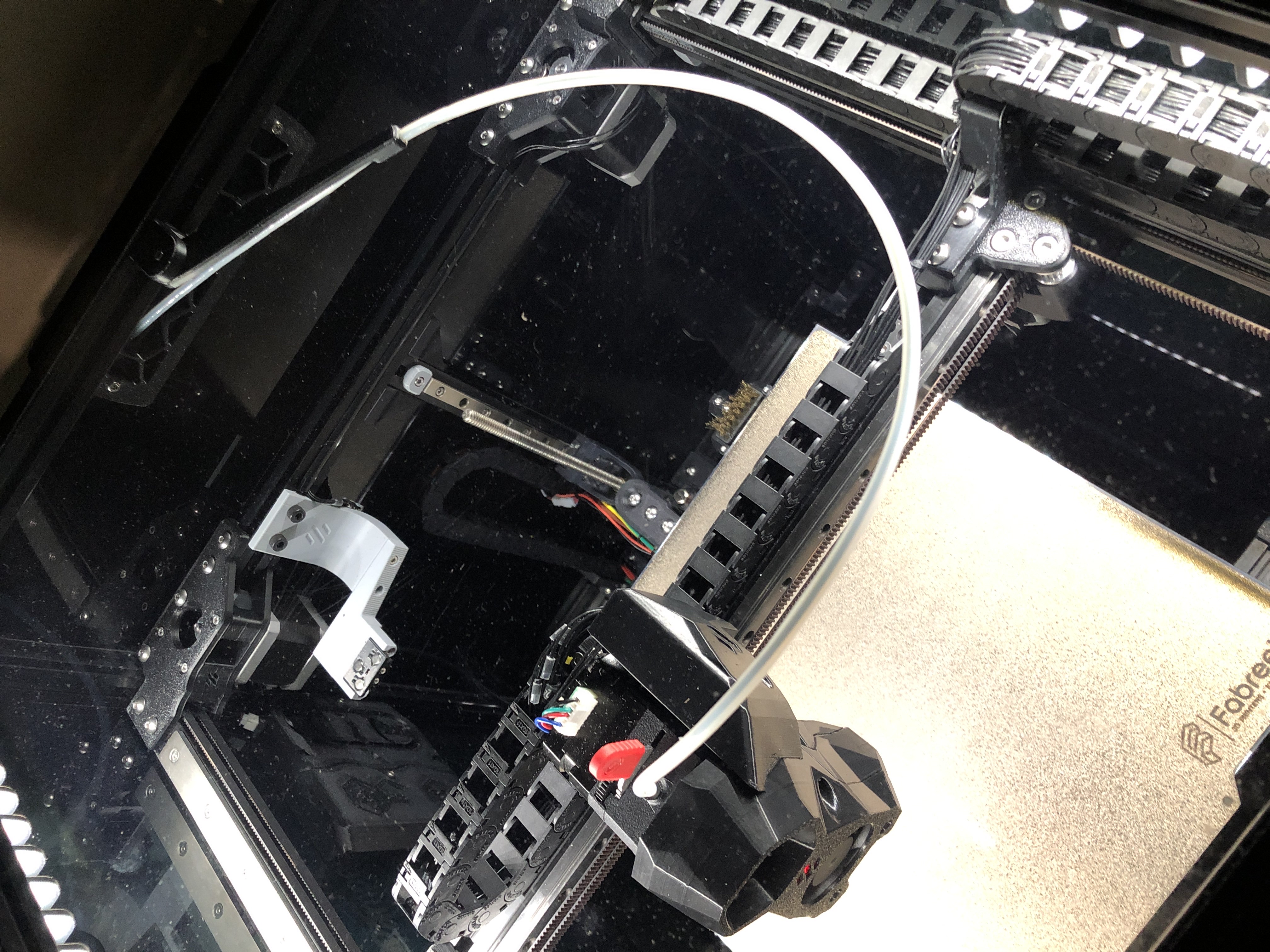

In my 350 build the PTFE tube kept getting caught so I made this arm to keep it up. The shorter arm works better so I recommend using it instead

Install

• Drill out bowden guide with 4mm drill bit for a perfect fit (optional)

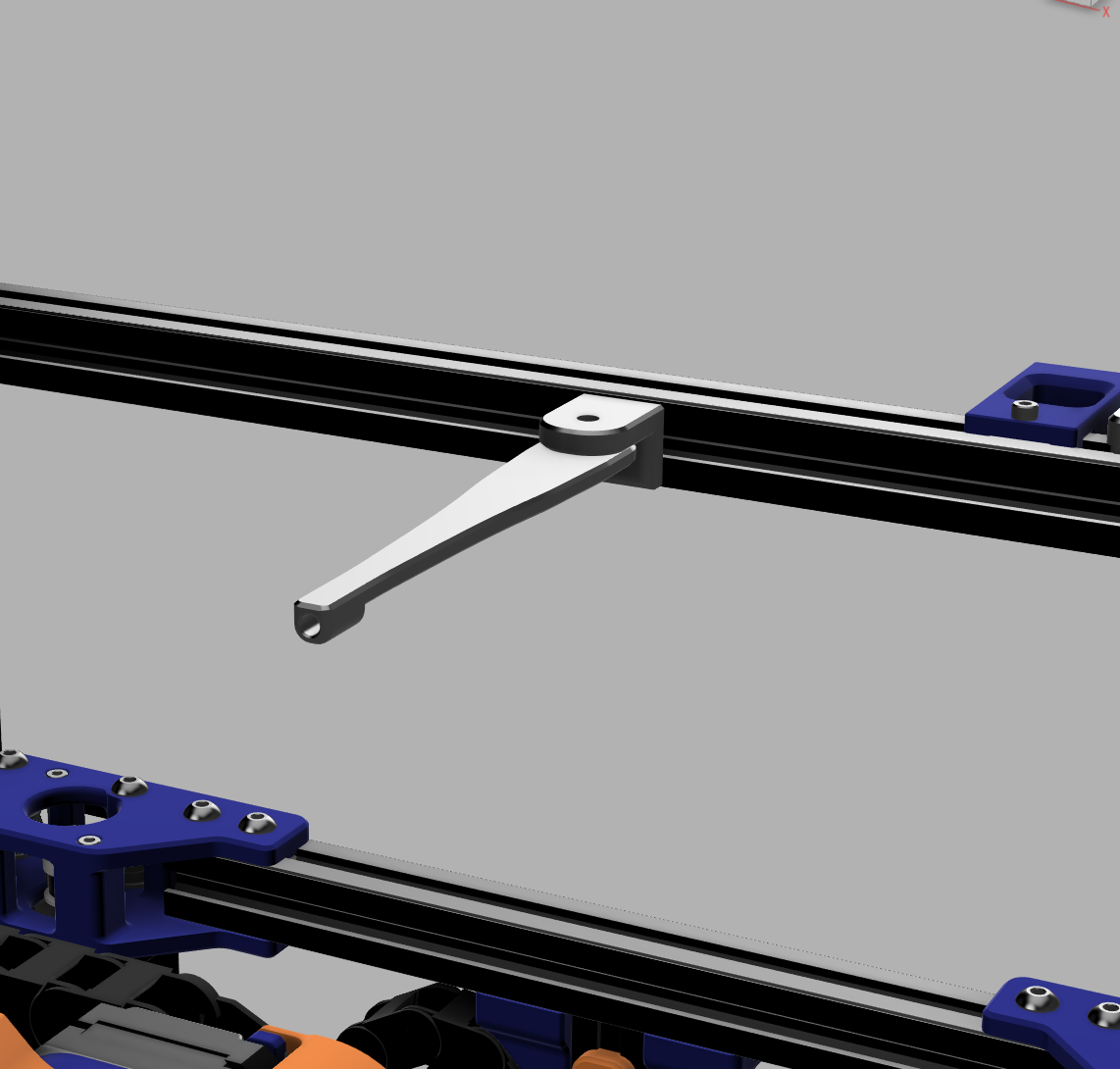

• Bolt mount to rear frame with M3x8 and tnut putting the lip at the top
• Screw arm on with M5x10 (I used a M5x8mm and it works fine) into the plastic allowing the arm to still be able to swivel
