Mini-After-LGX-Lite

by Bondtech
Mini-After-LGX-Lite
LGX Lite Toolhead Setup For Voron V0.1.
2022-04-14T13:56:16
783
GPL v3.0
CAD
Mini-After-LGX-lite.step
Z_Bed_adjustable_Y_offset.step
Images
README.md
STL
Mini-After-LGX-lite
cowling_universal.stl
cowling_universal_sls.stl
hotend_mount_copperhead_screw_mount_3007_fan.stl
hotend_mount_copperhead_screw_mount_3010_fan.stl
hotend_mount_dragon_3007_fan.stl
hotend_mount_dragonfly_3007_fan.stl
hotend_mount_dragonfly_3010_fan.stl
hotend_mount_mosquito_3007_fan.stl
hotend_mount_mosquito_3010_fan.stl
hotend_mount_revo-voron_3007_fan.stl
hotend_mount_revo-voron_3010_fan.stl
klicky.stl
strain_relief.stl
strain_relief_spacer_x2.stl
strain_relief_spacer_x2_trisert-136.stl
x-carriage_sls.stl
x-carriage_sls_trisert-136.stl
x-carriage_supported.stl
Tools
adafruit_adxl345_spacer.stl
adxl345_generic_mount.stl
ptfe_cutting_jig.stl
Z_Bed_adjustable_Y_offset
Front_Bed_Mount.stl
Front_Bed_Mount_lgx_lite_spacer.stl
Rear_Bed_Mount_Left.stl
Rear_Bed_Mount_Left_lgx_lite_spacer.stl
Rear_Bed_Mount_Right.stl
Rear_Bed_Mount_Right_lgx_lite_spacer.stl

LGX Lite Toolhead Setup For Voron V0.1

AN ALTERNATIVE TO THE VORON ORIGINAL SETUP

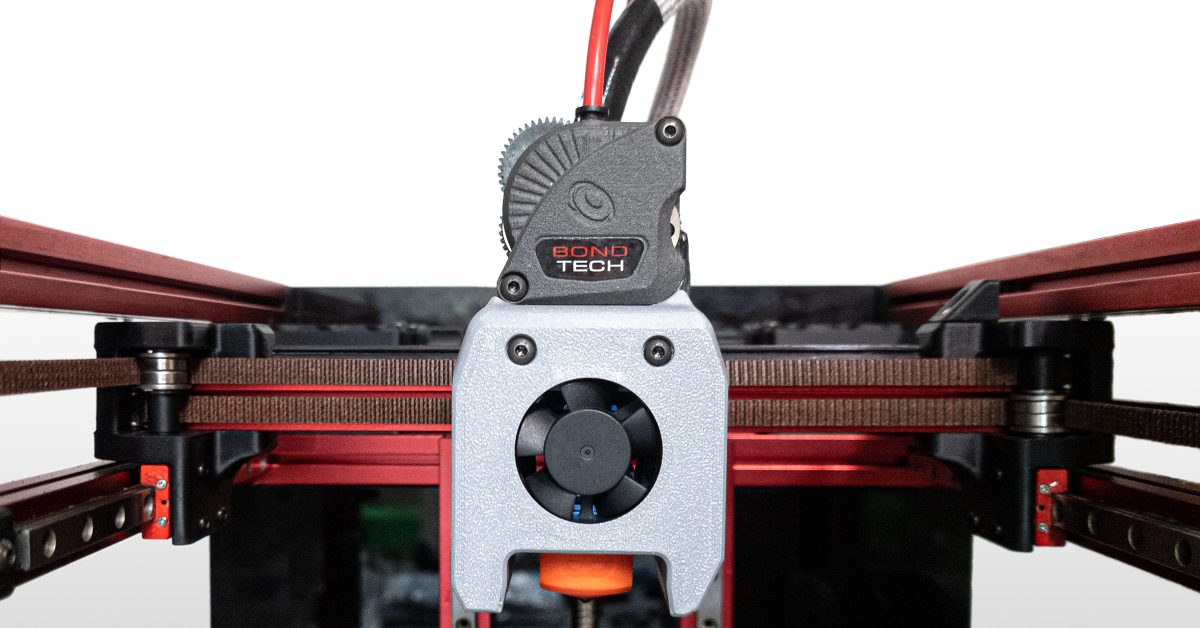

The Mini After-LGX-Lite

Designed by Olof Ogland, based on a draft design by Nemgrea.

This project also includes:

  • Mounts for several hotends;
  • AdaFruit and Generic ADXL345 accelerometer mounts – for Klipper’s input shaping tuning;
  • Z-axis Bed Adjustable Y offset set – to allow the print bed to move back and forth from -1 up to +3.5 mm.
  • Klicky – a z-probe mount that attaches with magnets

License and Credits

License: https://github.com/VoronDesign/Voron-0/blob/Voron0.1/LICENSE

Original source: https://github.com/VoronDesign/Voron-0

Credits: Nemgrea, DaveR, JosAr

Source for Klicky integration: https://github.com/jlas1/Klicky-Probe

Mini After-LGX-lite

Most screws required to perform the installation should be already on your kit. You may need some additional sizes and types. The following list identifies them:

  • 2x M3x6 BHCS for belts
  • 2x M3x30 BHCS for LGX Lite
  • 4x M2.5×6 low profile for Copperhead
  • 2x M3x10 BHCS LGX Lite to cowling

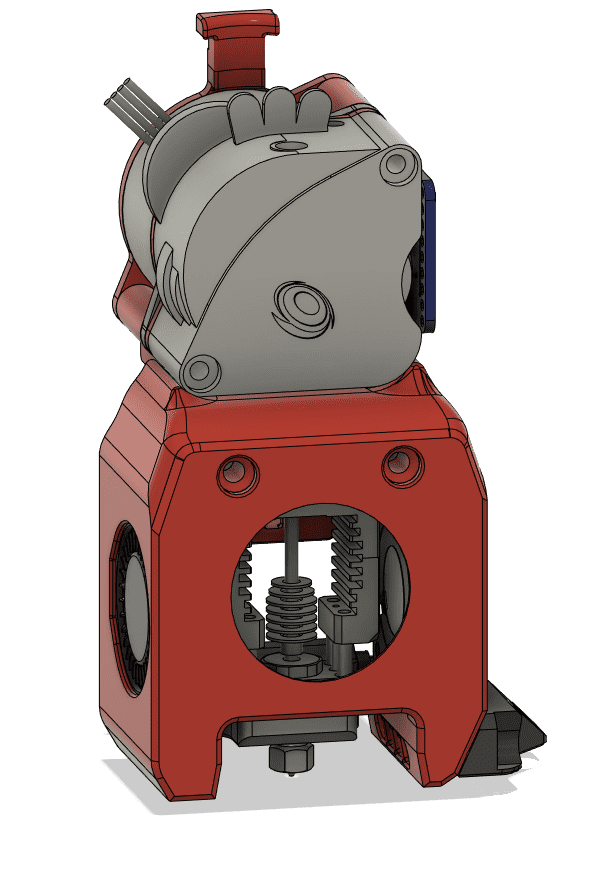

Cowling Universal

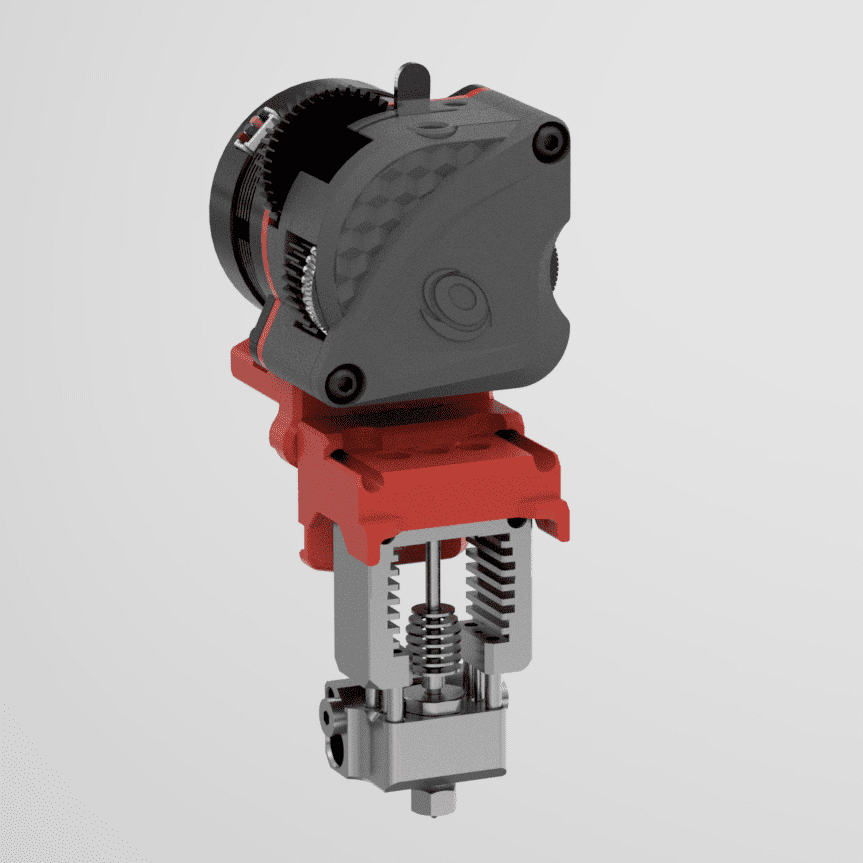

Hotend Mount MOSQUITO 3007 Fan

Hotend Mount MOSQUITO 3010 Fan

Hotend Mount COPPERHEAD Screw Mount 3007 Fan

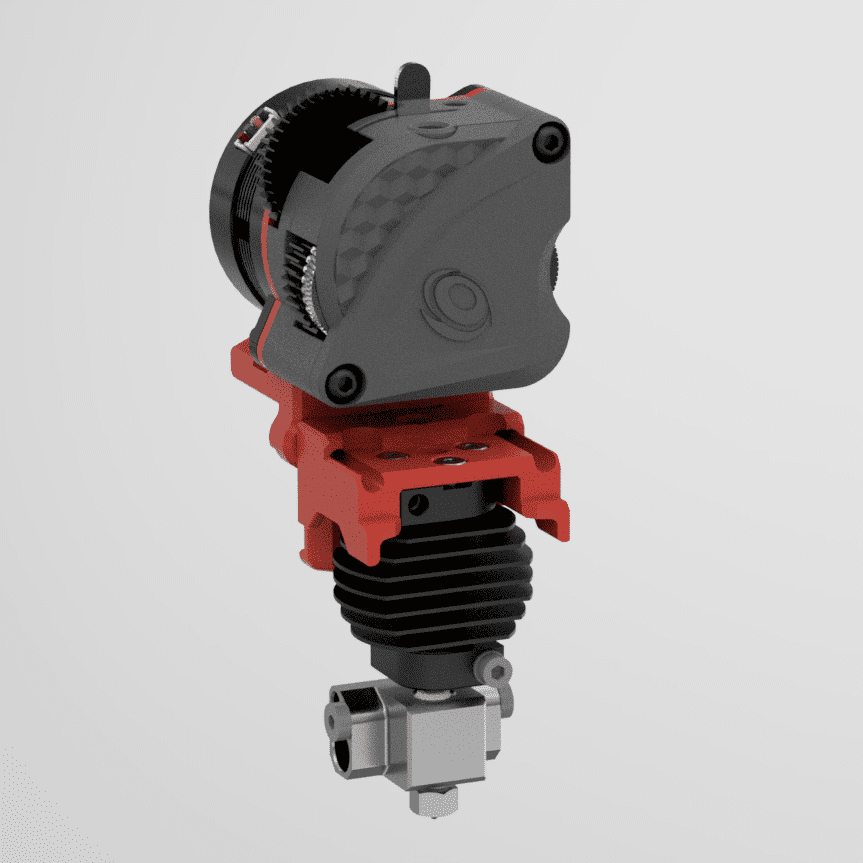

Hotend Mount COPPERHEAD Screw Mount 3010 Fan

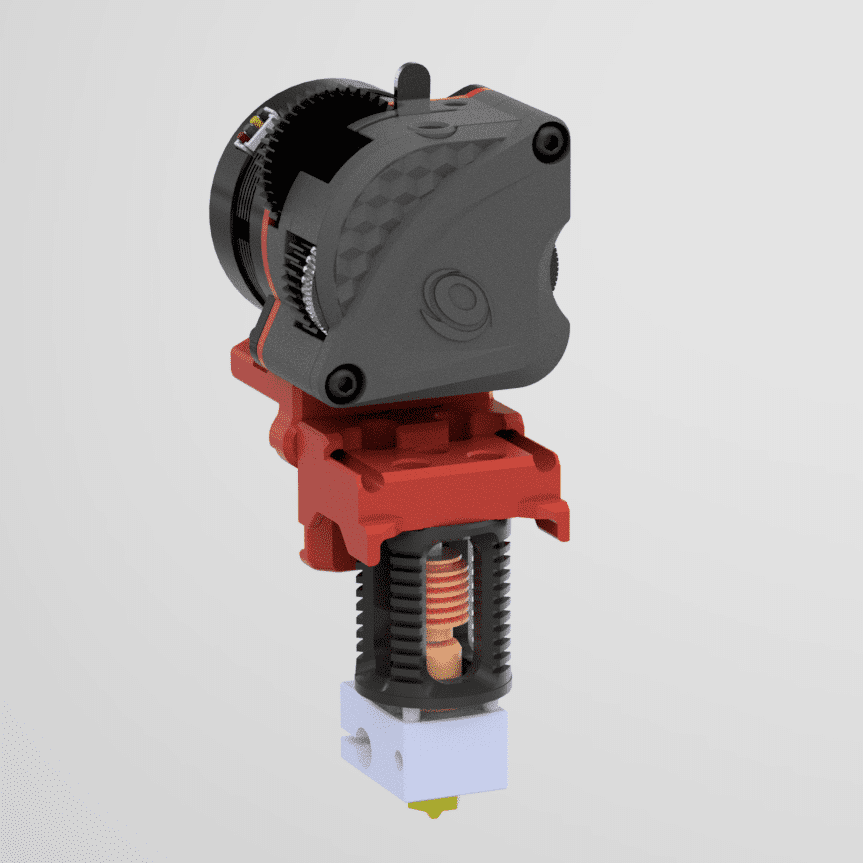

Hotend Mount DRAGON 3007 Fan

Hotend Mount DRAGONFLY 3007 Fan

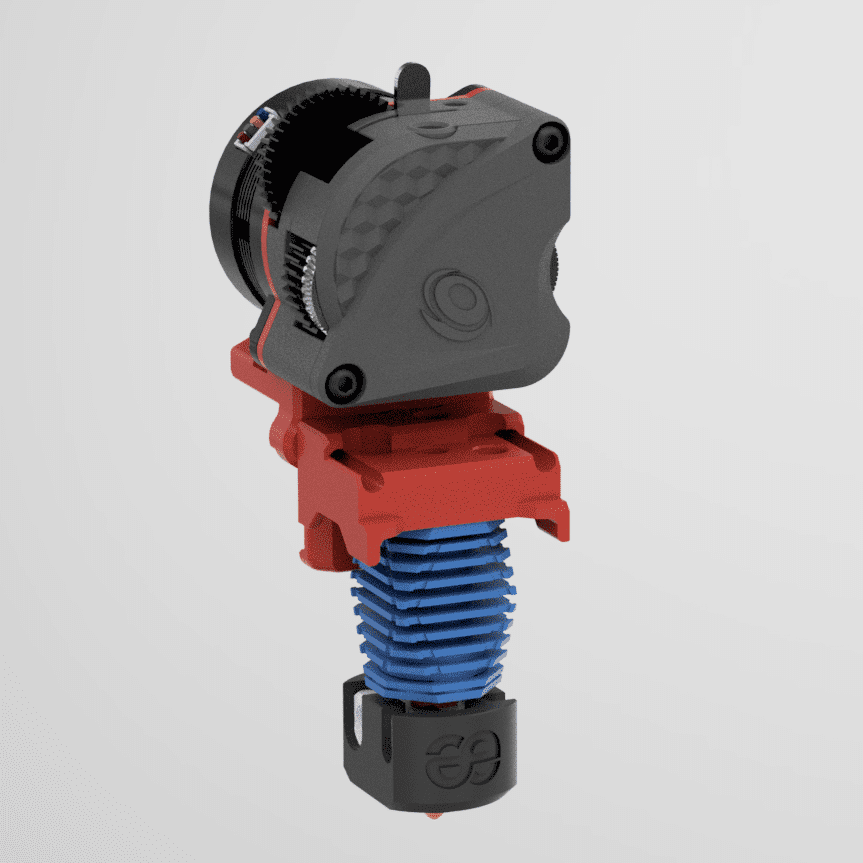

Hotend Mount DRAGONFLY 3010 Fan

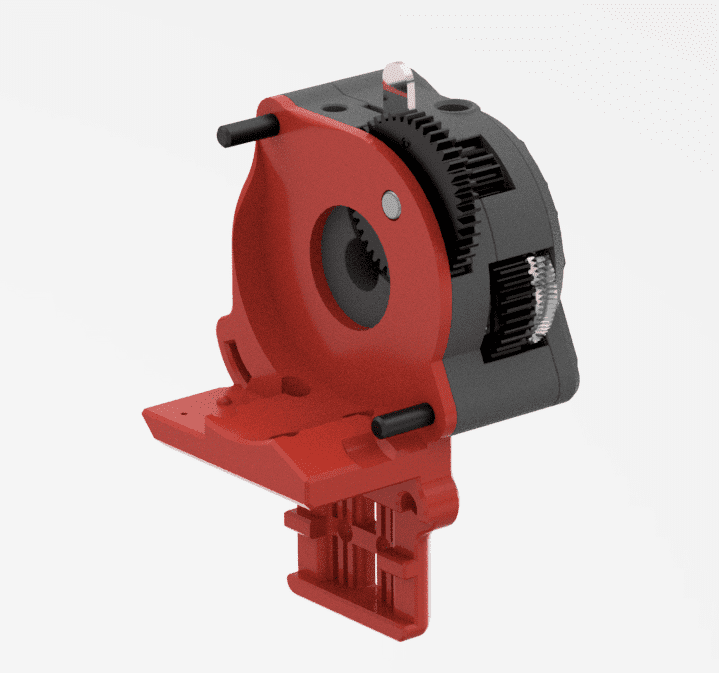

X-Carriage

Tools

PTFE Cutting Jig
