Neopixel Holder

nikolasbabetas

A holder to attach Neopixel/WS2812B Led Strips to the V0.1
    CAD
      Neopixel_Holder.f3d
      Neopixel_Holder.step
    Images
    STL
      Neopixel_Holder.stl
    .metadata.yml
    README.md

Select a file to view it.

Neopixel Mount

These are neopixel mounts that slide into the V0.1's top extrusions (20 leds in total)

BOM

  • Neopixel/WS2812B led strip (60 leds/m) only 34cm, 20 leds are needed
  • Cables

Instructions

  • Print 4 of the "Neopixel_Mount" (2 for each side)
  • Solder only the 5V and GND wires on the led strips
  • Slide them into the mounts
  • Solder the signal wire based on the diagram below (There is a hole in the mount to allow the wire to go from the one strip to the other)
  • Remove the 2 screws holding each extrusion into place
  • Remove the 3 screws that attach the panels onto each extrusion
  • Slide the mounts onto each extrusion and screw the extrusions in place

Neopixel Holder

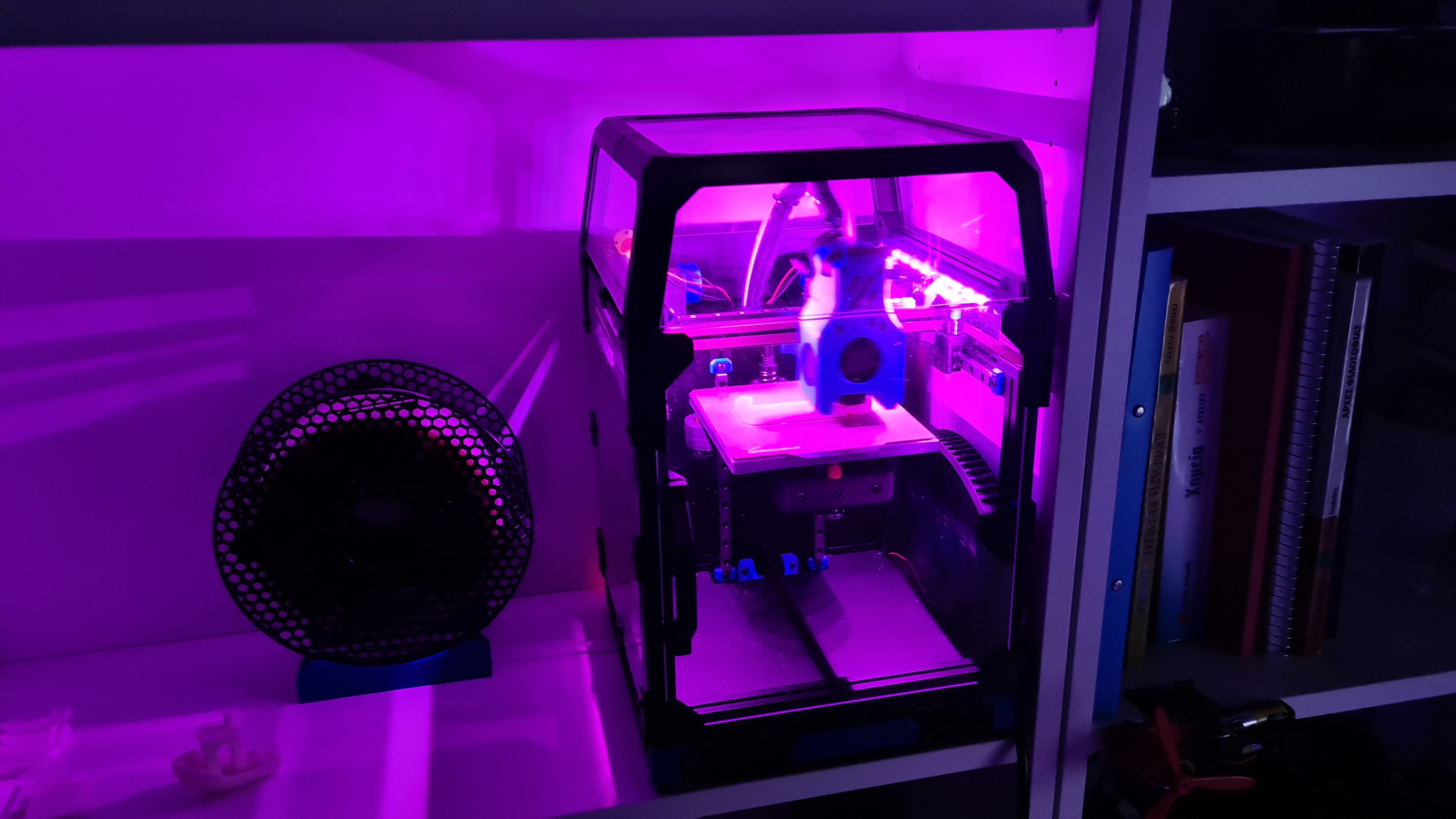

White Blue Print Pink

Printed Parts

Neopixel_Holder

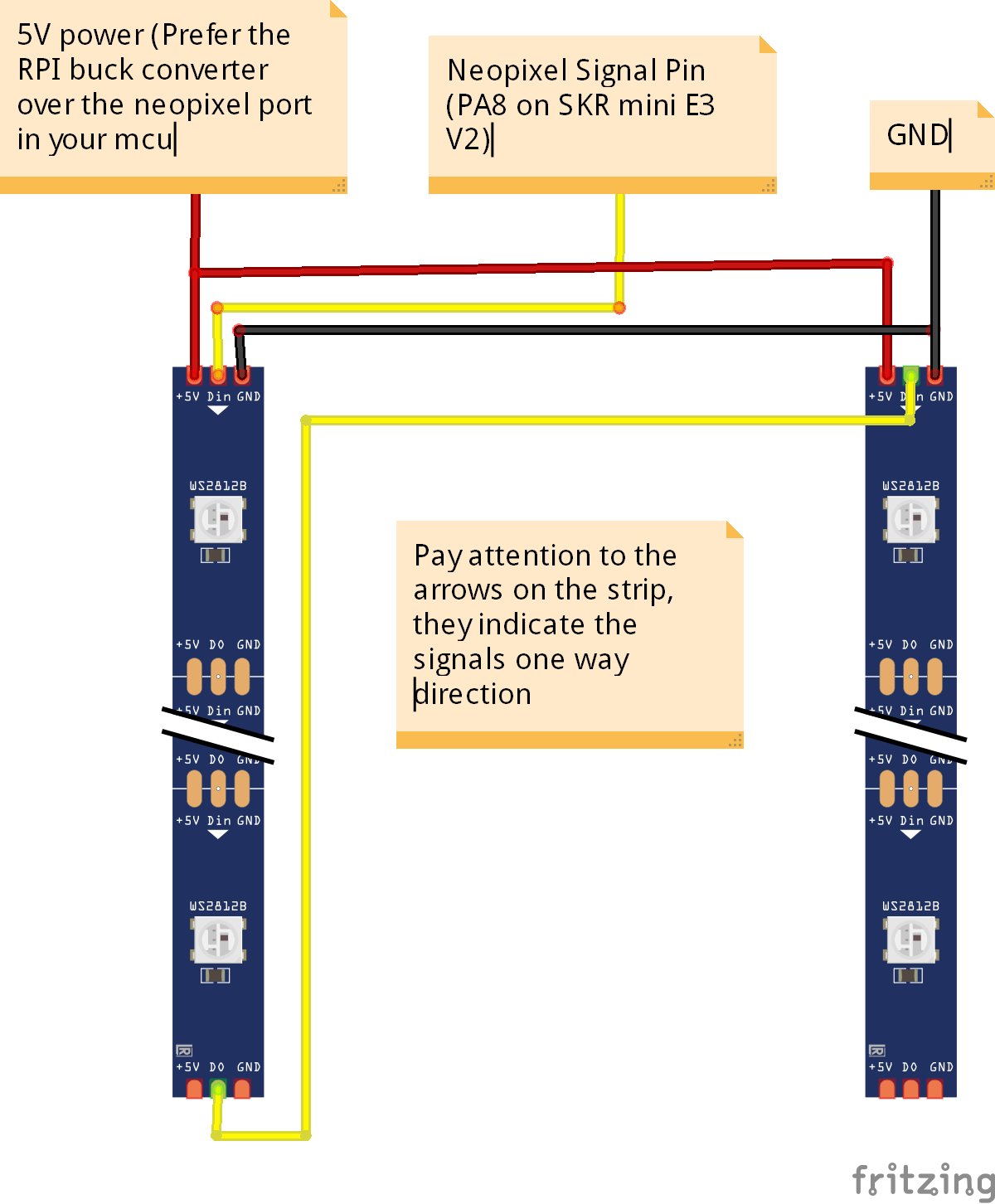

Circuit Diagram

CircuitDiagram

Assembly

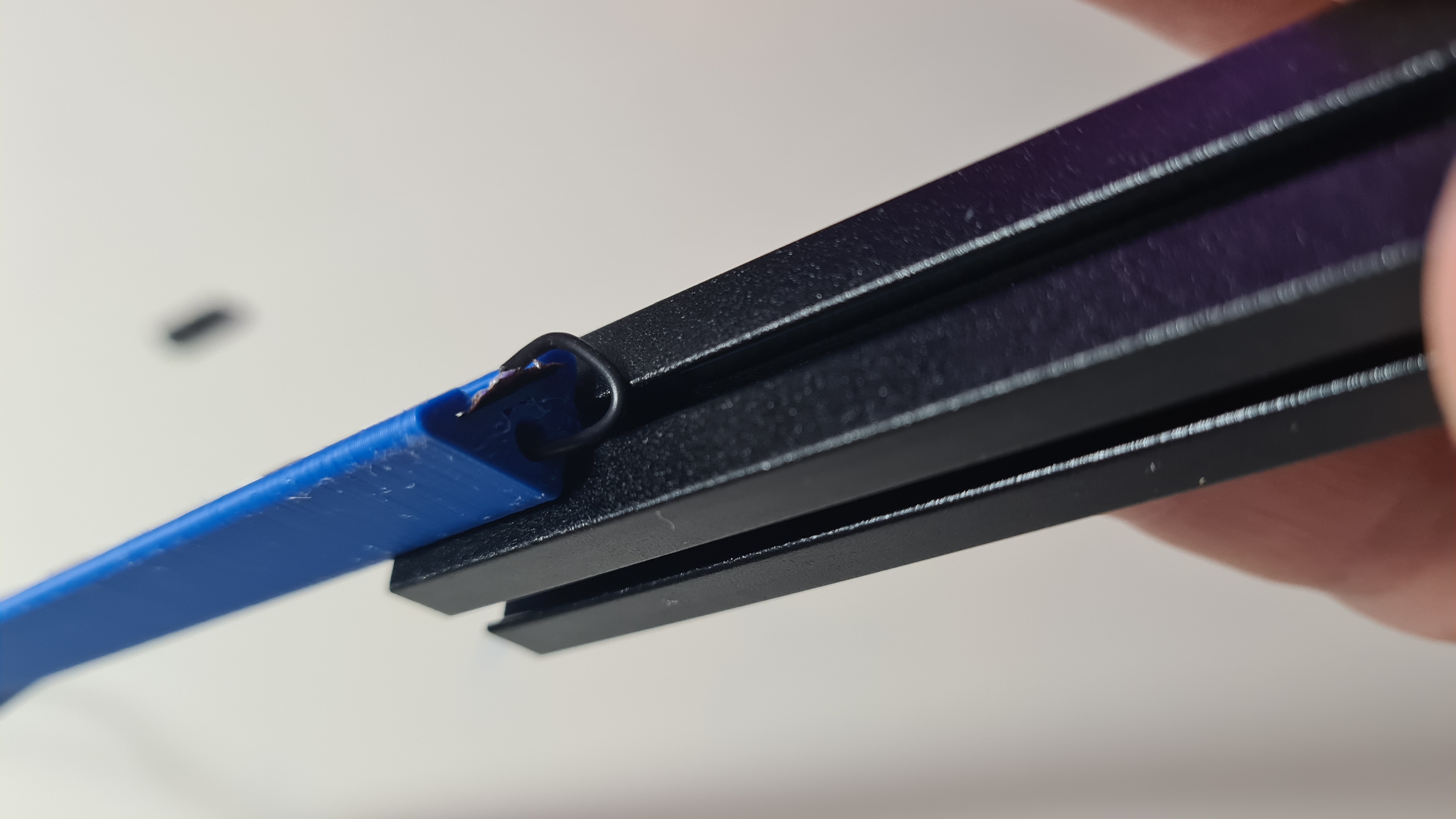

Extrusion LedStripConnections
