ComboInlet

by LoganFraser
ComboInlet
Skirt pieces for Trident, 2.4 and 2.4r2 for combo inlets in 2 sizes.
2023-10-24T11:32:29
756
GPL v3.0
CAD
Trident_2.4_ComboInletSkirt_v8.f3d
Trident_2.4_ComboInletSkirt_v8.step
README.md
STLs
2.4_ComboNarrowInlet.stl
2.4_ComboWideInlet.stl
2.4r2_ComboNarrowInlet.stl
2.4r2_ComboWideInlet.stl
Trident_ComboNarrowInlet.stl
Trident_ComboWideInlet.stl

Combo Inlet for Trident, 2.4 and 2.4r2

These skirt plates are for the fuse-filter-switch combo c14 inlets.

Wide switch Shaffner FN283-10-06 inlets, metal case up to 57mm width.

  • Or equivalent product from a reputable reseller. Amazon/Aliexpress not recommended.

Narrow switch in the style of adamstech inlets, metal case up to 48mm width.

BOM - Same as stock part, plus:

  • 2 - M3 5x4mm heatsets (voron standard)
  • 2 - M3-8mm flat head screws (or longer)

Both Inlet

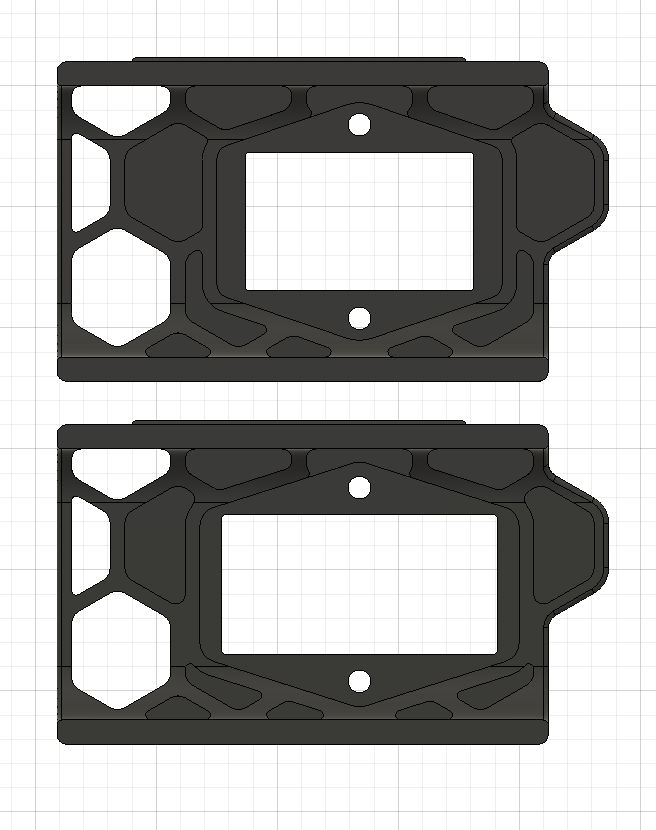

Combo Inlets
