DS18B20 Mount

Simple DS18B20 temperature sensor mount based on the z endstop mount.

BOM

  • 1x DS18B20 / DS18B20-PAR
  • 1x 4.7kohm resistor
  • 2x M3x10 BHCS
  • 2x M3 nuts
  • 1x zip tie

Instructions

[temperature_sensor chamber]
sensor_type: DS18B20
serial_no: <insert serial no here>
sensor_mcu: rpi

Note: you can also position the mount on the inner side of the z axis rails which looks better, but also potentially block access to the z axis for later maintenance.

Images

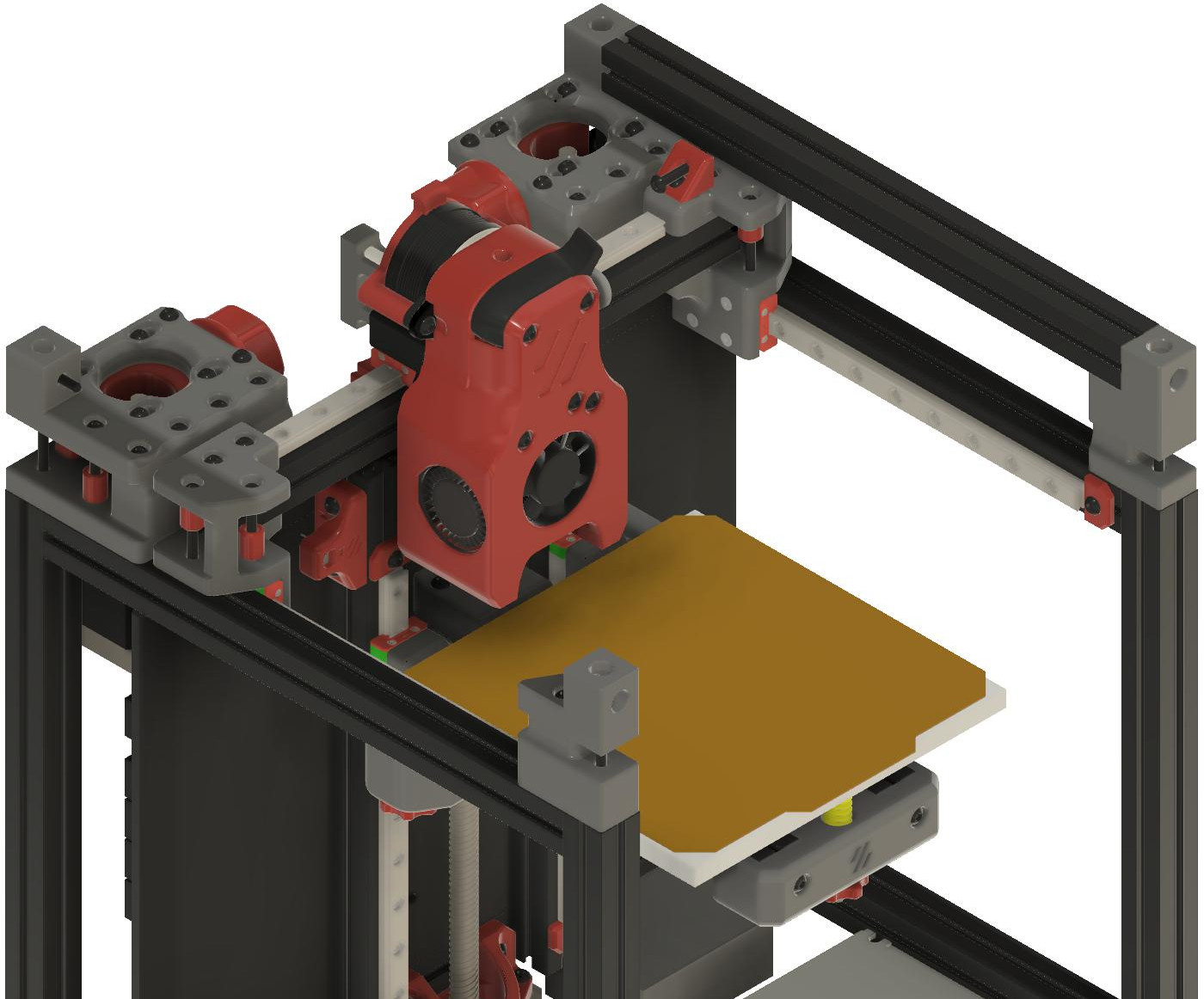

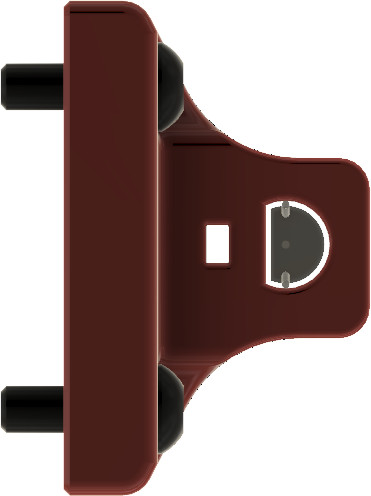

CAD mount sideways view CAD mount back view CAD mount on left extrusion CAD mount in context

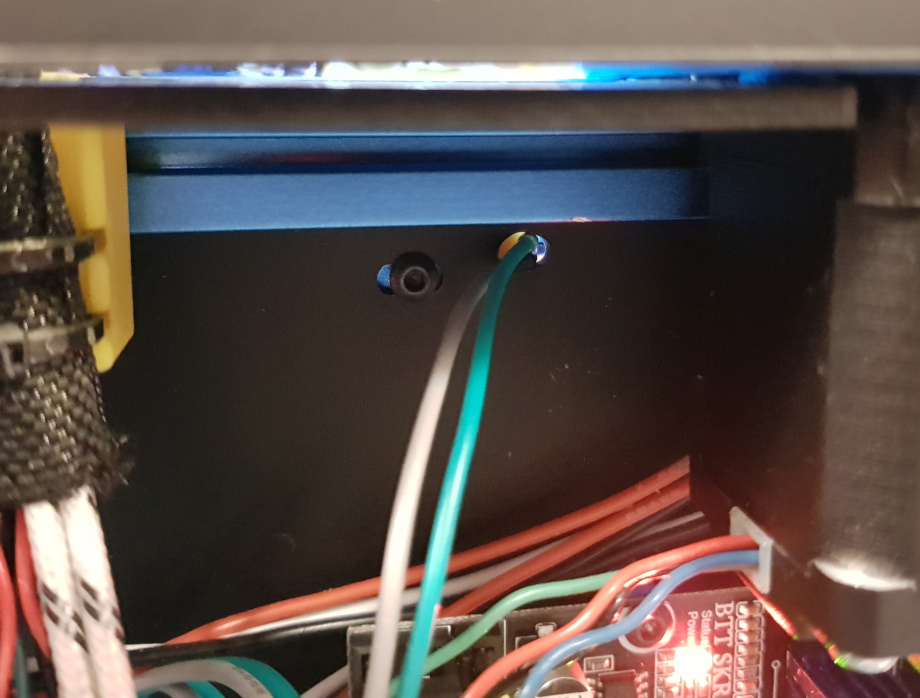

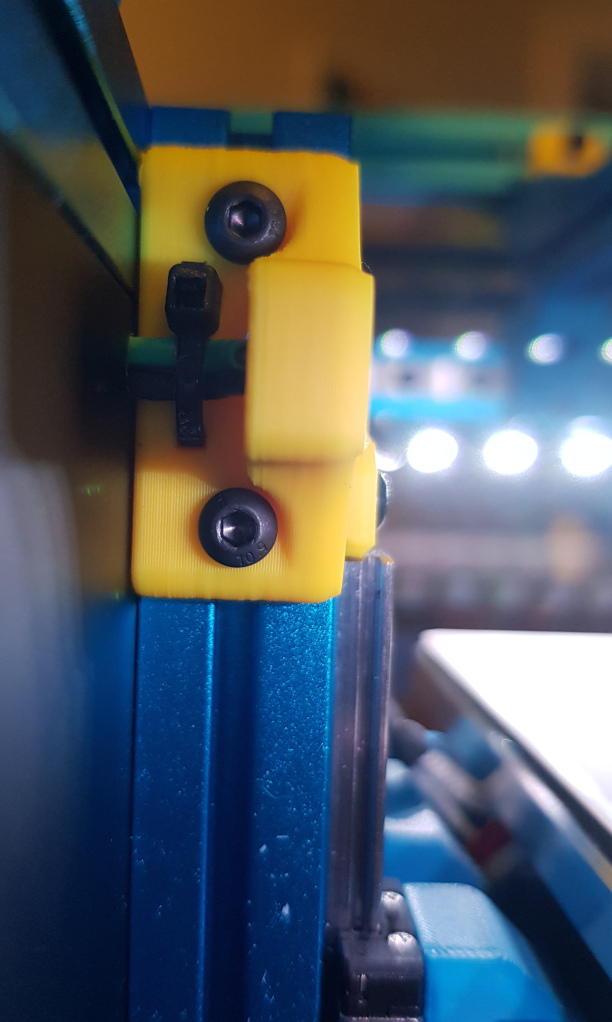

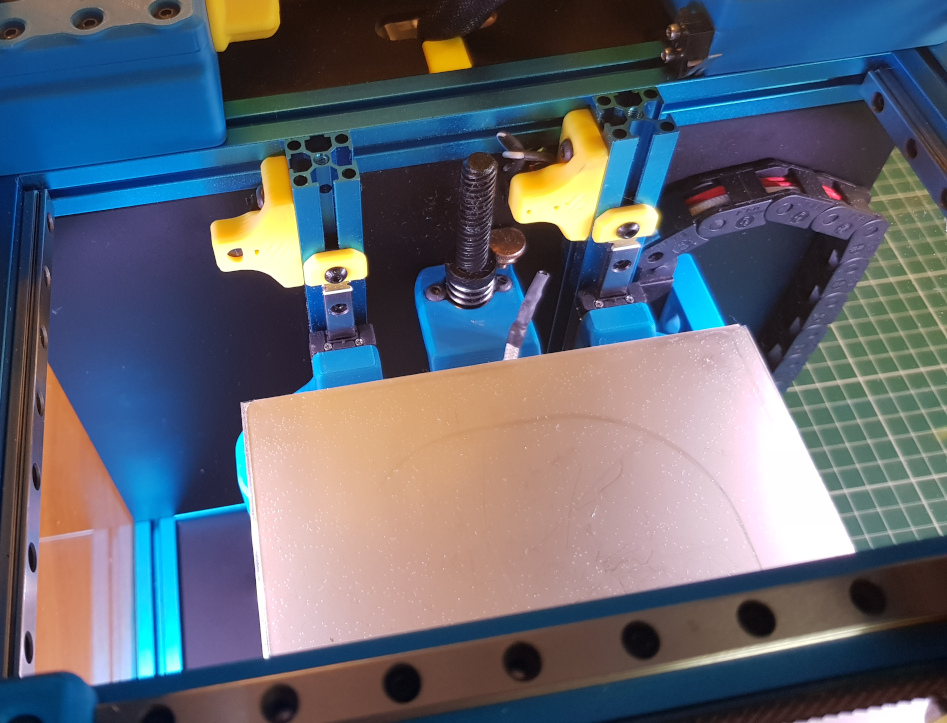

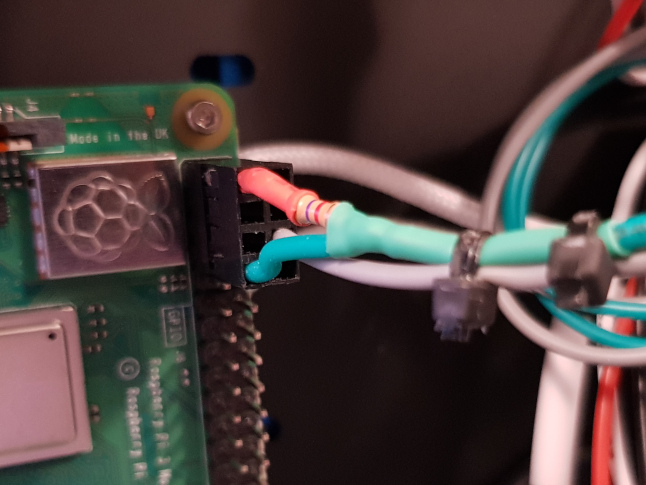

Example setup using a DS18B20-PAR: PIC installed mount front PIC installed mount back PIC wiring with DS18B20-PAR PIC wiring on PI with DS18B20-PAR
