Voron 0 LCD Touchscreen Skirt

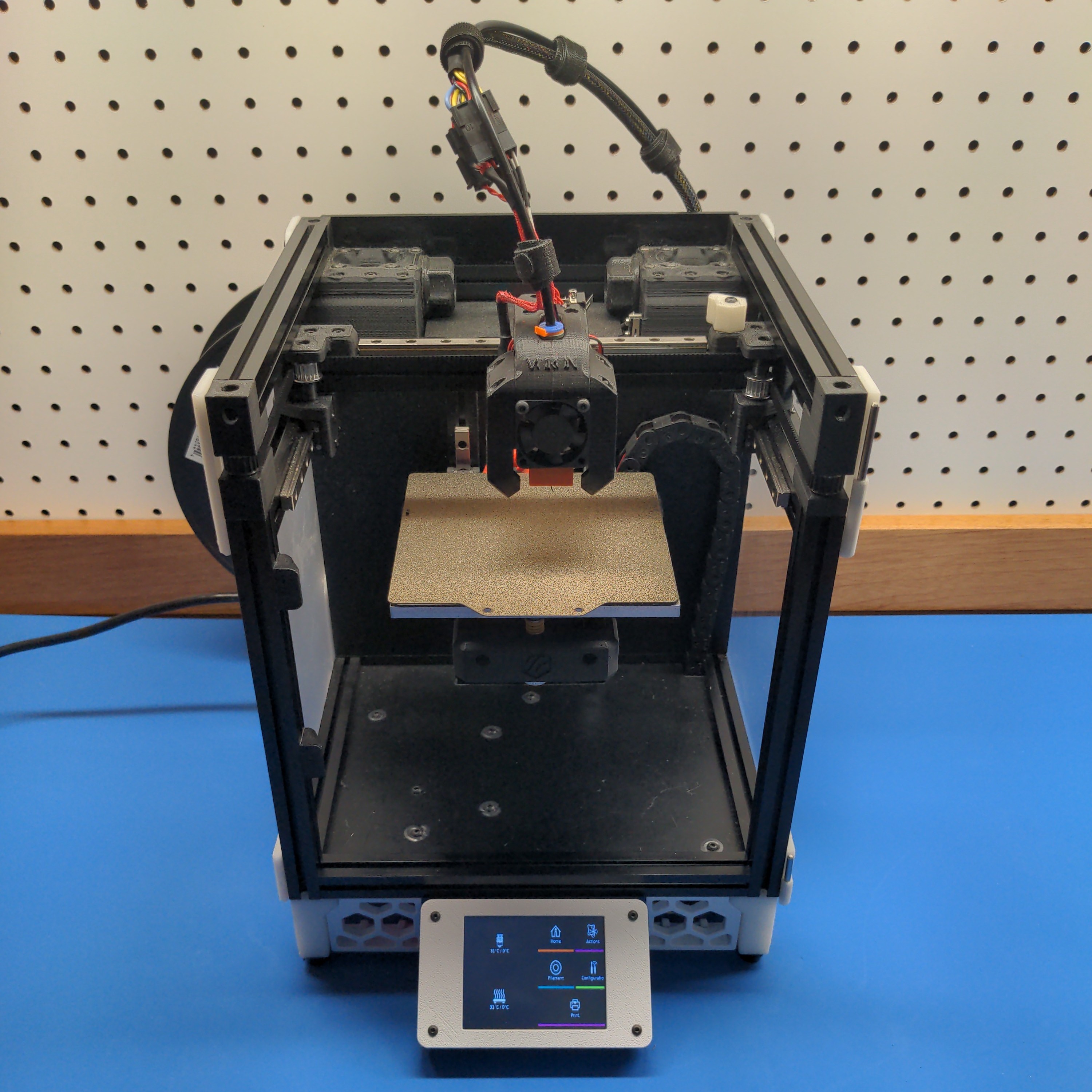

V0 3D Printer with LCD Mount

A large LCD touchscreen for OctoScreen or OctoDash.

Bill of Materials

All required parts are listed below. Supplier examples are provided for convenience.

Non-Printed Parts

Additional Non-Stock Parts:

QtyDescriptionSupplier Links
1Adafruit PiTFT Plus 3.2 TouchscreenAdafruit
1M2.5 x 3.0 mm Heat Set InsertsAlliexpress, McMaster Carr
1M3 x 50 mm SHCSAlliexpress, Bolt Depot
4M2.5 x 10 mm BHCSAlliexpress
140-pin IDE Extension CableAmazon

Repurposed Stock Parts:

QtyDescriptionSupplier Links
12M3 x 8 mm BHCSAlliexpress, Bolt Depot
12M3 Makerbeam 1515 T Slot NutsAlliexpress, Amazon
4Rubber Feet (14 x 11 x 9)Alliexpress

3D Printed Parts

QtyDescriptionSTL Slicer Image
2Skirt Side ASkirt Side A
2Skirt Side BSkirt Side B
1Skirt Front LeftSkirt Front Left
1Skirt Front RightSkirt Front Right
1LCD Mounting BracketLCD Mounting Bracket
1LCD Face PlateLCD Face Plate
2Foot FrontFoot Front
2Foot RearFoot Rear

All 3D Parts can be printed without support material: ABS, 0.4 mm nozzle, and 0.2mm layers.

Assembly Instructions

  1. Install 4 M2.5 heat set inserts into LCD Mounting Bracket
  2. Remove the stock V0 skirt and feet.
  3. Install extended feet with 50mm M3 SHCS.
  4. Install all Side Skirt A/B parts using the stock mounting T-nuts and M3 x 8 screws.
  5. Install the LCD Mounting Bracket using the middle two T-nuts on the front extrusion.
  6. Install Front Skirt Left/Right using the remaining two T-nuts on each side of the LCD.
  7. Connect the 40-pin ribbon cable to the Adafruit PiTFT Plus.
  8. Place the Adafruit PiTFT Plus into the LCD Face Plate.
  9. Route the ribbon cable through LCD Mounting Bracket to Raspberry Pi.
  10. Secure LCD Face Plate with four M2.5 x 10 screws.

Software Configuration

Follow the Adafruit LCD Installation Instructions.

The 3.2" LCD is pin-equivalent to the 2.8" LCD. You can safely follow the same instructions.

The recommended installation type is fbcp, framebuffer copy:

sudo python3 adafruit-pitft.py --display=28r --rotation=90 --install-type=fbcp

The fbcp option causes the X11 output to be mirrored on the PiTFT display.
