Waveshare 5.5inch HDMI AMOLED Mount

Mod to mount a Waveshare 5.5inch full HD display on a V2

CAD

Waveshare-5.5-v18.f3z

Images




STLs

Voron-2.4-Mount-Generisch-v6.stl

WaveShare-5.5-cover.stl

.metadata.yml

README.md

Select a file to view it.

This replaces the default Klipper display with a Waveshare 5.5inch HDMI AMOLED display as a skirt to the Voron 2.4.

Attached to Voron 2.4

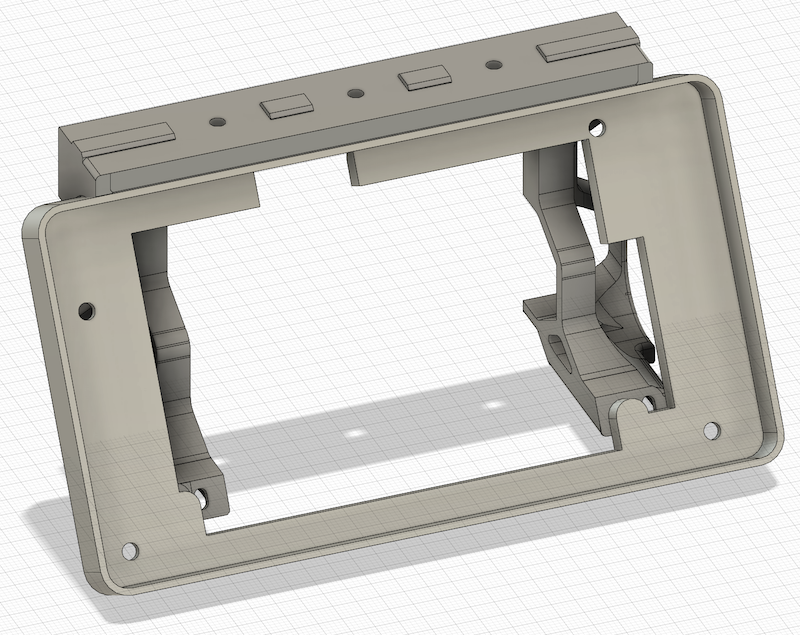

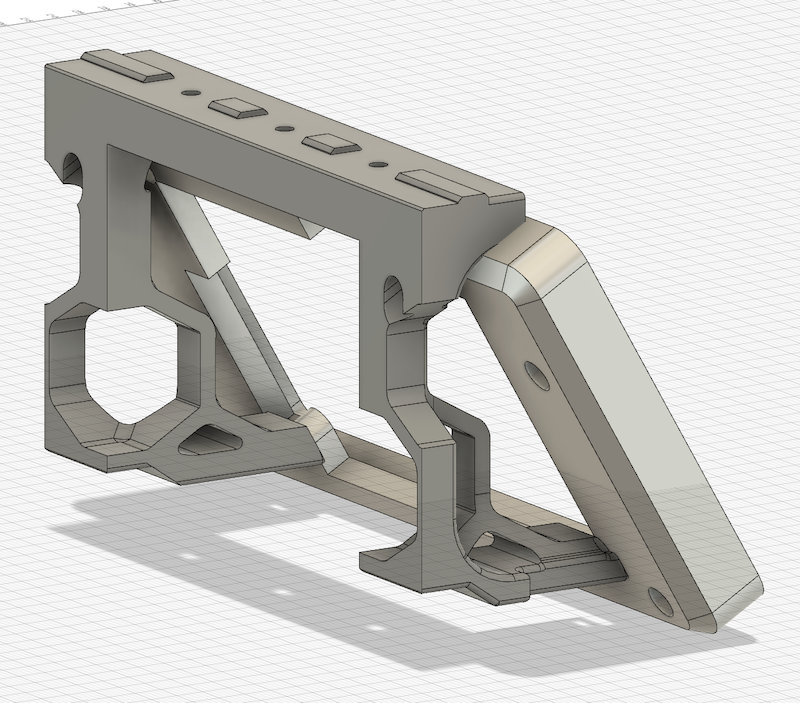

Fusion rendering front Fusion rendering back

Required hardware

In addition to things you can reuse from the stock build and to the screw included in the display, these items are required:
