V2.4

6mm Tempered Glass Mod

Koios

Lock levers and rests for 6mm Tempered glass panels
    Images
    STEPs
      Lock_Body.step
      Lock_Pin_A_x2.step
      Lock_Pin_B_x2.step
      glass_rest.STEP
    STLs
      Lock_Body.stl
      Lock_Pin_A_x2.stl
      Lock_Pin_B_x2.stl
      glass_rest.STL
    .metadata.yml
    README.md

Select a file to view it.

Glass mount

This is a modification of the front panel locks from 2.1 to support holding 6mm tempered glass panels. I used 3m VHB to adhere them to my glass panels so that thickness was considered as well. The tab which supports the glass was thickened and has proven to be very robust on my printer. This can be run with 2.4 without issue, using panel sizes from the 2.1 bom.

I've also added 'Glass_Rest.stl' & the step file to secure the side panels with quick releases as well. This is necessary as the glass is quite heavy and the lock levers wont hold it from sliding.

Print the stock lock 2.1 levers here to go along with these parts.

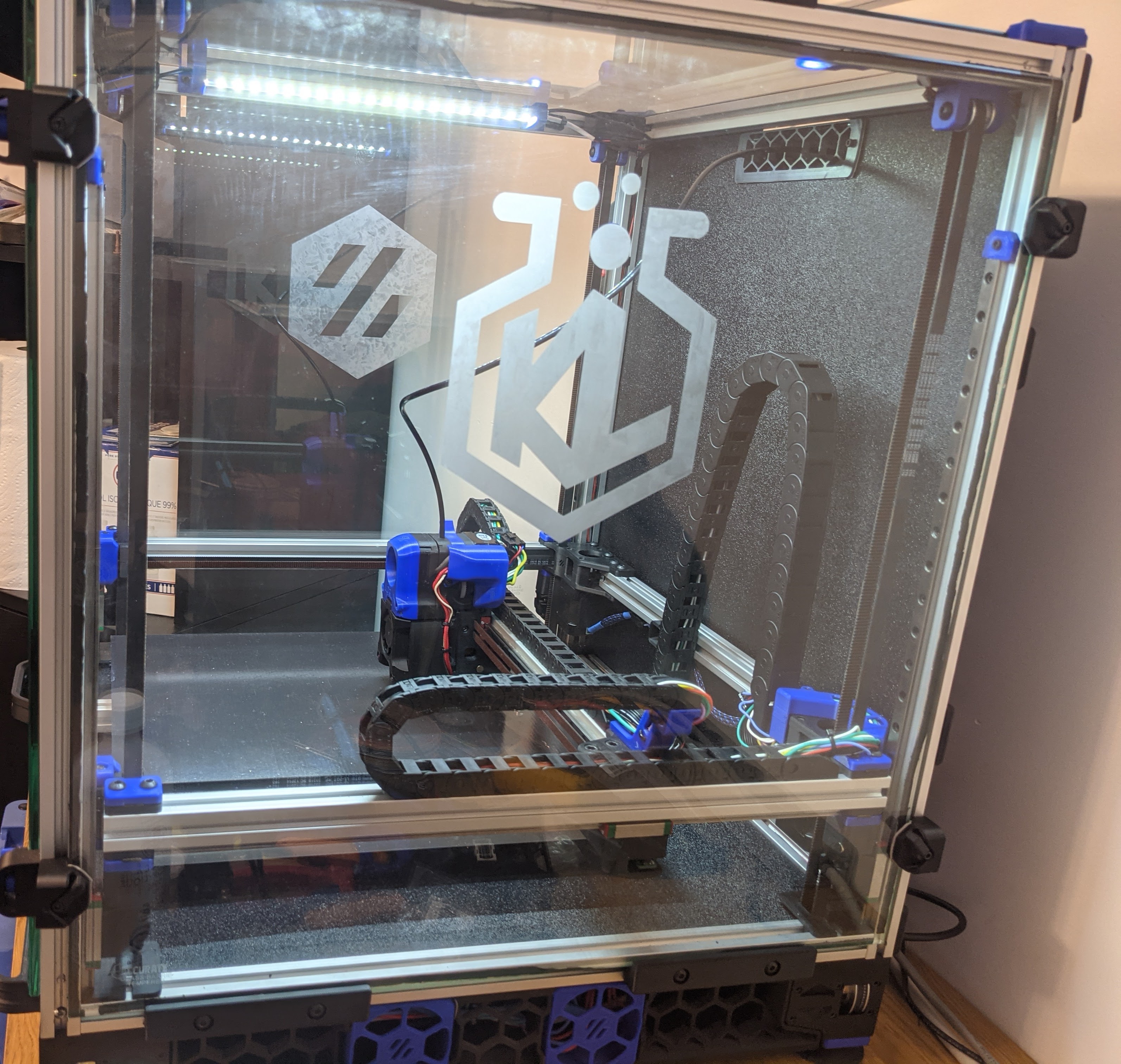

Here is the finished assembly in production: Glass panels on a voron 2.4
